Removal And Installation
- Disconnect the battery (-) terminal.
- Remove the airbag module from the steering wheel.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")

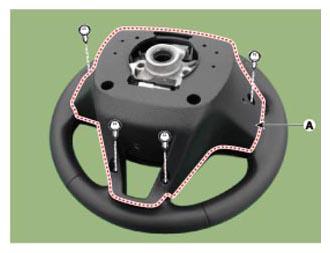

- Remove the steering wheel back cover (A) after loosening the screws.

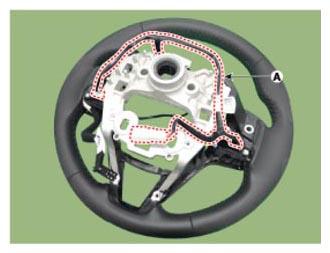

- Disconnect the steering remote control connector (A).

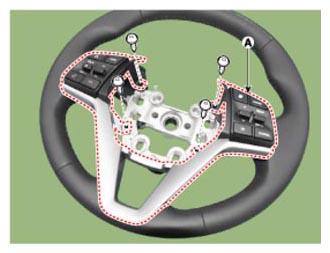

- Remove the steering remote control (A) after unfastening the screws.
- Install in the reverse order of removal.
