Door Outside Handle

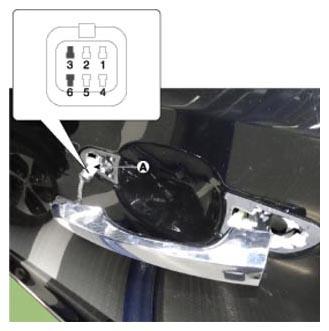

  1. Disconnect the front door outside handle connector (A).
    G13033312Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between terminals No 3 and No 6.
    G13033313Courtesy of HYUNDAI MOTOR AMERICA
    No Description
    1 Door antenna (+)
    2 Pocket lamp LED (+)
    3 Door lock/unlock button switch
    4 Door antenna (-)
    5 Pocket lamp LED (-)
    6 Door lock/unlock button switch ground
    G13033314Courtesy of HYUNDAI MOTOR AMERICA
