Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

2. Remove the front seat shield outer cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

3. Remove the front seat shield inner cover.

   (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

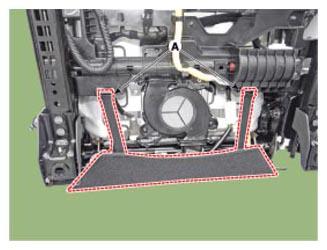

4. Remove the front seat lower protector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

5. Separate the clip and remove the air ventilation duct (A).

   Courtesy of HYUNDAI MOTOR AMERICA

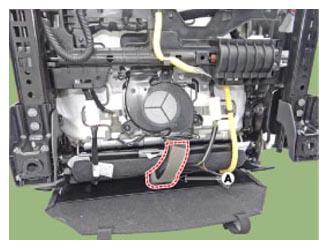

6. Disconnect the front seat motor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

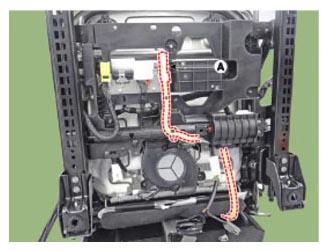

7. Loosen the mounting screws and remove the airbag wiring (A).

   Courtesy of HYUNDAI MOTOR AMERICA

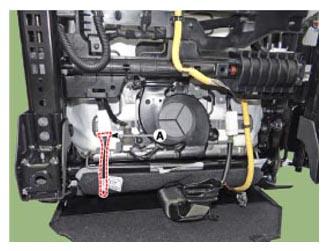

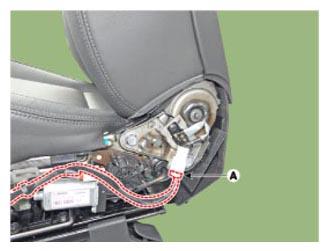

8. Disconnect the power seat limit switch connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

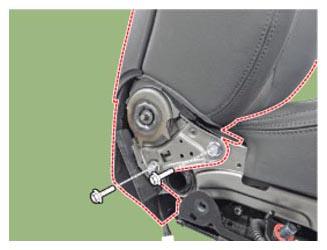

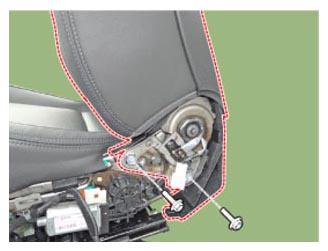

9. Loosen the front seat back frame mounting bolts (A).

   Tightening torque:

   44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

   [LH]

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Courtesy of HYUNDAI MOTOR AMERICA

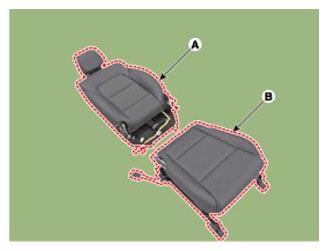

10. Disconnect the front seat back assembly (A) and front seat cushion assembly (B).

    Courtesy of HYUNDAI MOTOR AMERICA

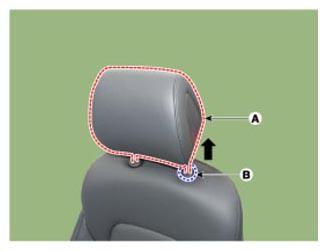

11. Push the lock pin (B), remove the front seat headrest (A).

    Courtesy of HYUNDAI MOTOR AMERICA

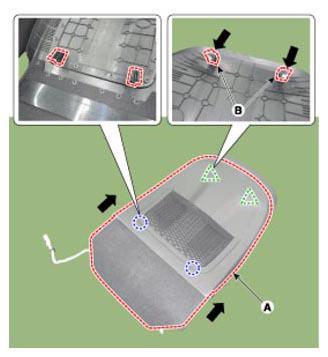

12. Remove the front seat back board (A).
    1. Separate the upper back cover by pushing the lock pin (B) in the direction of the arrow.
    2. Remove the front seat back cover (A) by lifting in the direction.

    Courtesy of HYUNDAI MOTOR AMERICA

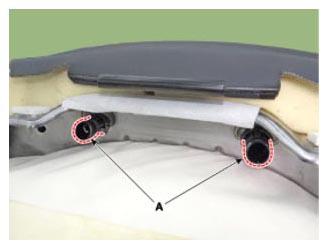

13. Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

    Courtesy of HYUNDAI MOTOR AMERICA

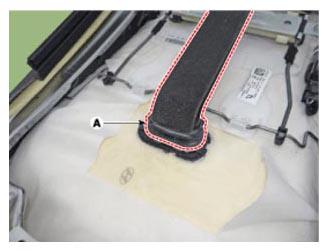

14. Disconnect the front air ventilation upper duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

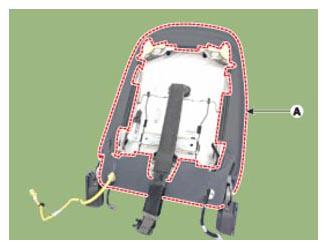

15. Remove the protector (A) from the front seat back frame.

    Courtesy of HYUNDAI MOTOR AMERICA

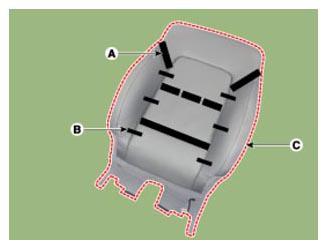

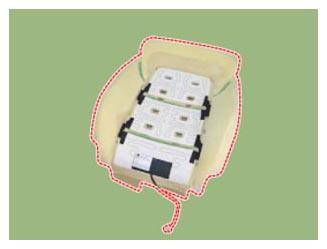

16. After removing the Velcro tape (A) and hog-ring clips (B) inside the front seat back cover, remove the seat back cover (C).

    Courtesy of HYUNDAI MOTOR AMERICA

    Courtesy of HYUNDAI MOTOR AMERICA

17. Install in the reverse order of removal.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).

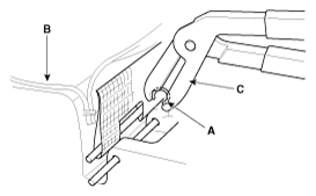

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880 - 4F000).

    Courtesy of HYUNDAI MOTOR AMERICA
