Bank 1/Exhaust

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

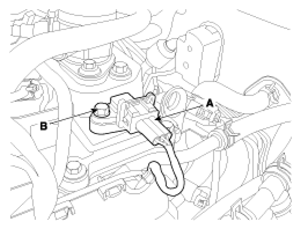

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.
    G13020951Courtesy of HYUNDAI MOTOR AMERICA
