Repair Procedures: Inspection

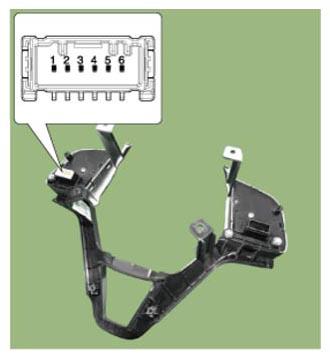

1. Check for resistance between terminals in each switch position (LH).

   Courtesy of HYUNDAI MOTOR AMERICA

   [LH: Audio + Hands Free]

   SWITCH POSITION (LH) CONNECTOR TERMINAL RESISTANCE



   Switch	Connector Terminal	Resistance (±5%)
   SEEK Up	2-5	430 Ω
   SEEK Down		1.11 kΩ
   MODE		2.11 kΩ
   MUTE		3.11 kΩ
   Volume (+)		4.61 kΩ
   Volume (-)		6.81 kΩ
   Voice		10.71 kΩ
   Hang Up		18.91 kΩ
   Call		40.91 kΩ

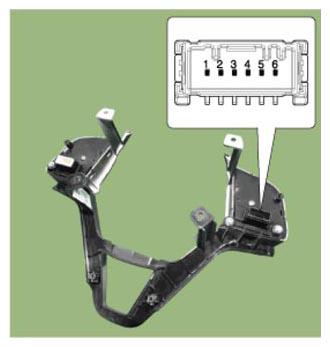

2. Check for resistance between terminals in each switch position (RH).

Courtesy of HYUNDAI MOTOR AMERICA

[RH: Trip + Cruise]
