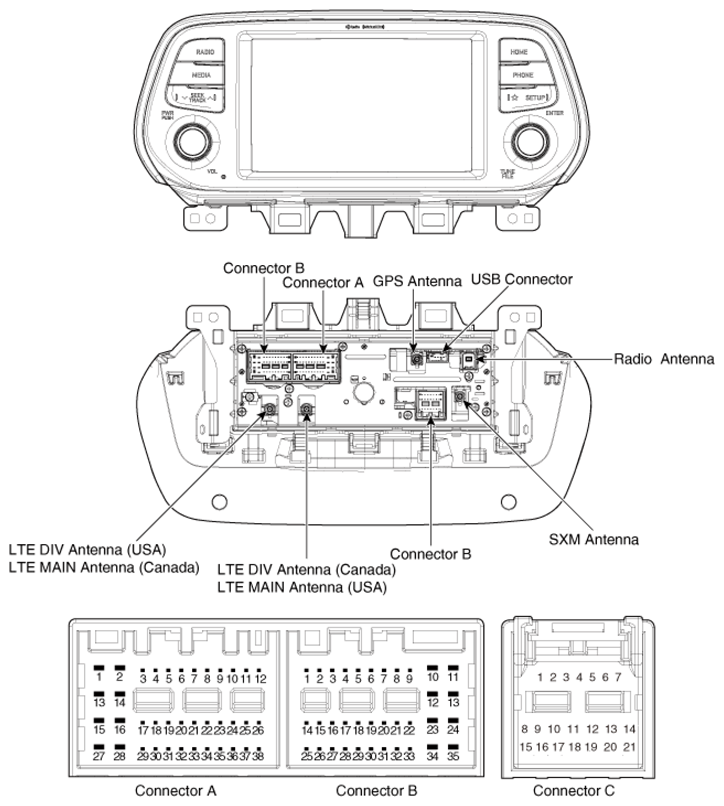

Components And Components Location: Components: [Radio/MP3]
Connector Pin Information
| No | Connector A (EXT AMP) | Connector A (INT AMP) | Connector B | Connector C |
|---|---|---|---|---|
| 1 | - | Rear Door Left Speaker (+) | - | B-CAN (High) |
| 2 | - | Rear Door Left Speaker (-) | MIC_Signal (+) | C-CAN (High) |
| 3 | Amp_Nave voice (+) | - | - | - |
| 4 | Amp_SPDIF (High) | - | - | - |
| 5 | - | - | ANT_Power | - |
| 6 | Camera_Power | Camera_Power | ILL (+) | - |
| 7 | Camera_Video | Camera_Video | MM_CAN (High) | - |
| 8 | SVM_VIN_C | Camera_VIN_C | - | B-CAN (Low) |
| 9 | - | - | - | C-CAN (Low) |
| 10 | AUX_Audio_R | AUX_Audio_R | BATT (+) | - |
| 11 | AUX_Detect | AUX_Detect | BATT (+) | - |
| 12 | Steering Wheel_Key | Steering Wheel_Key | GND | - |
| 13 | - | Front Door Left Speaker (+) | GND | - |
| 14 | - | Front Door Left Speaker (-) | MIC_GND | - |
| 15 | - | Front Door Right Speaker (-) | MIC_Signal (-) | - |
| 16 | - | Front Door Right Speaker (+) | Camera_DET 2 | MTS-Key |
| 17 | Amp_Nave voice (-) | - | - | - |
| 18 | Ammp_SPDIF (Low) | - | - | - |
| 19 | Ammp_SPDIF (GND) | - | ILL (-) | - |
| 20 | Camera_Power_GND | Camera_Power_GND | MM_CAN (Low) | - |
| 21 | Camera_Video_GND | Camera_Video_GND | - | - |
| 22 | Camera_Video_C_GND | SVM_Video_C_GND | ACC | |
| 23 | - | - | - | |
| 24 | AUX_Audio_L | AUX_Audio_L | - | |
| 25 | AUX_Audio_GND | AUX_Audio_GND | - | |
| 26 | Steering wheel_Key_GND | Steering wheel_Key_GND | - | |
| 27 | - | Rear Door Right Speaker (-) | - | |
| 28 | - | Rear Door Right Speaker (+) | - | |
| 29 | - | - | - | |
| 30 | - | - | - | |
| 31 | - | - | - | |
| 32 | Camera_Det 1 | Camera_Det 1 | - | |
| 33 | Camera_Shield_GND | Camera_Shield_GND | IGN 1 | |
| 34 | SVM_Video_C_Sheld_GND | SVM_Video_C_Sheld_GND | - | |
| 35 | - | - | - | |
| 36 | - | - | ||
| 37 | - | - | ||
| 38 | Speed | Speed |
| USB Connector | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | USB VOD 5V | 3 | USB (+) | |
| 2 | USB (-) | 4 | USB GND |
| GPS Antenna | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | Signal | 2 | GND |
| Radio Antenna | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | FM1/AM | 2 | GND |
| LTE MAIN Antenna (USA) | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | C-pad | 2 | Ground |
| LTE DIV Antenna (USA) | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | Roof | 2 | Ground |
| LTE MAIN Antenna (Canada) | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | C-pad | 2 | Ground |
| LTE DIV Antenna (Canada) | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | Roof | 2 | Ground |
| SXM Antenna | PIN | Description | PIN | Description |
|---|---|---|---|---|
| 1 | SXM | 2 | Ground |
