Interior 1 Antenna
NOTE:
- Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the floor console front tray.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

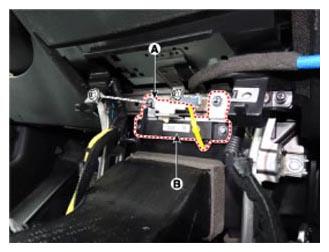

- Remove the interior 1 antenna (B) after loosening the mounting nuts and disconnecting the connector (A).
