Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

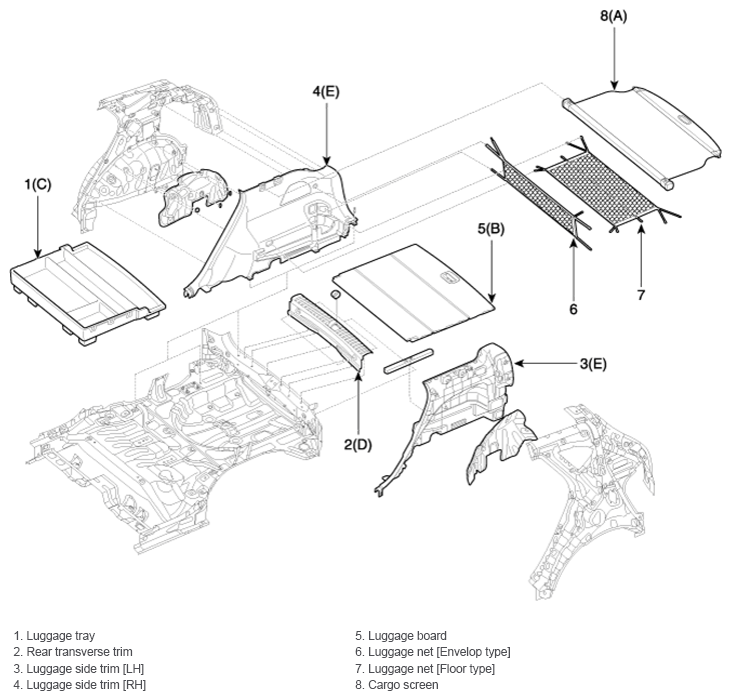

- Remove the cargo screen (A).
- Remove the luggage board (B).
- Remove the luggage tray board (C).
- Remove the rear transverse trim (D).
- After loosening the mounting screws, remove the luggage side trim (E).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
