Repair Procedures: Inspection

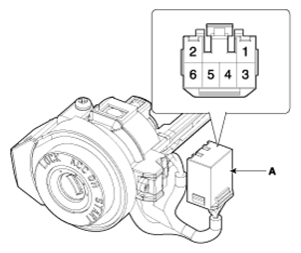

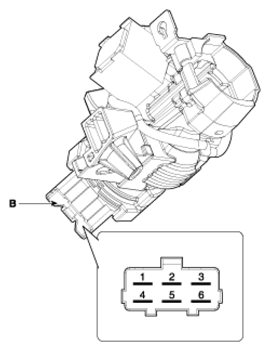

  1. Disconnect the Key Warning Switch Connector (A) and Ignition Switch Connector (B) from the Steering Column.
    G13033451Courtesy of HYUNDAI MOTOR AMERICA
    G13033452Courtesy of HYUNDAI MOTOR AMERICA

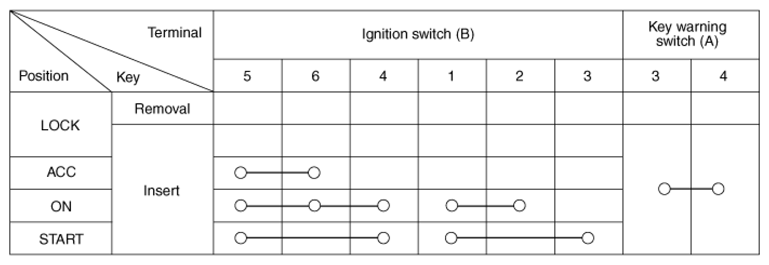

  2. Check for Continuity between the Terminals.
  3. If Continuity is not specified, replace the Switch.
G13033453Courtesy of HYUNDAI MOTOR AMERICA
