Home › Hyundai › 2021 › Tucson Value, FWD › Repair and Diagnosis › Body & Frame › Windows › Power Windows › Power Window Motor › Components And Components Location › Components

Components And Components Location: Components

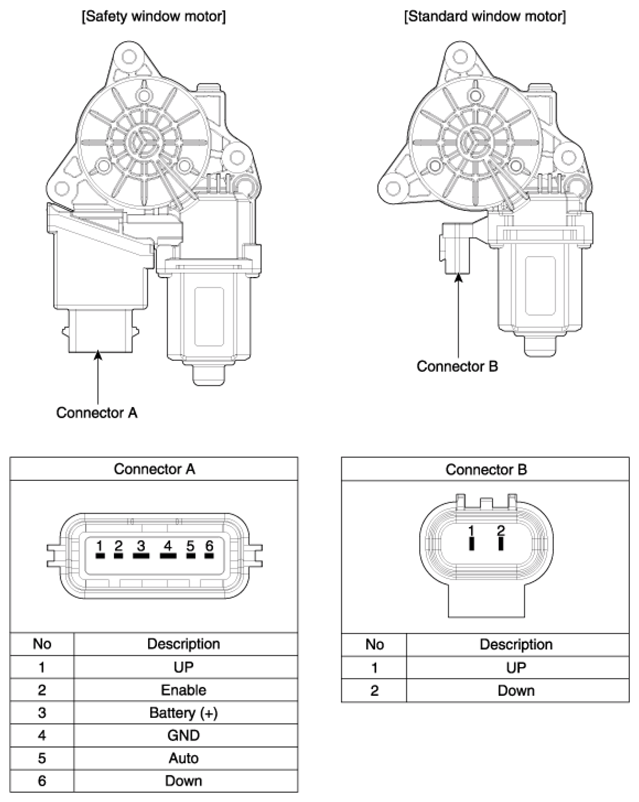

Fig 1: Power Window Motor Connector End View And Terminal Description
G13030468Courtesy of HYUNDAI MOTOR AMERICA
