Components And Components Location
›
Components
›
Assist Power Window Switch
Assist Power Window Switch

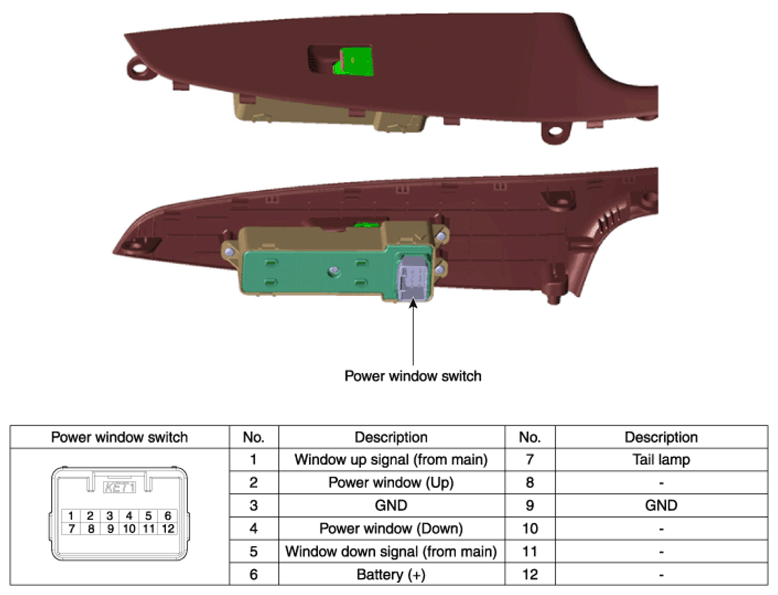

Fig 1: Assist Power Window Switch Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
