Home › Hyundai › 2021 › Tucson Value, FWD › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components And Components Location › Component

Components And Components Location: Component

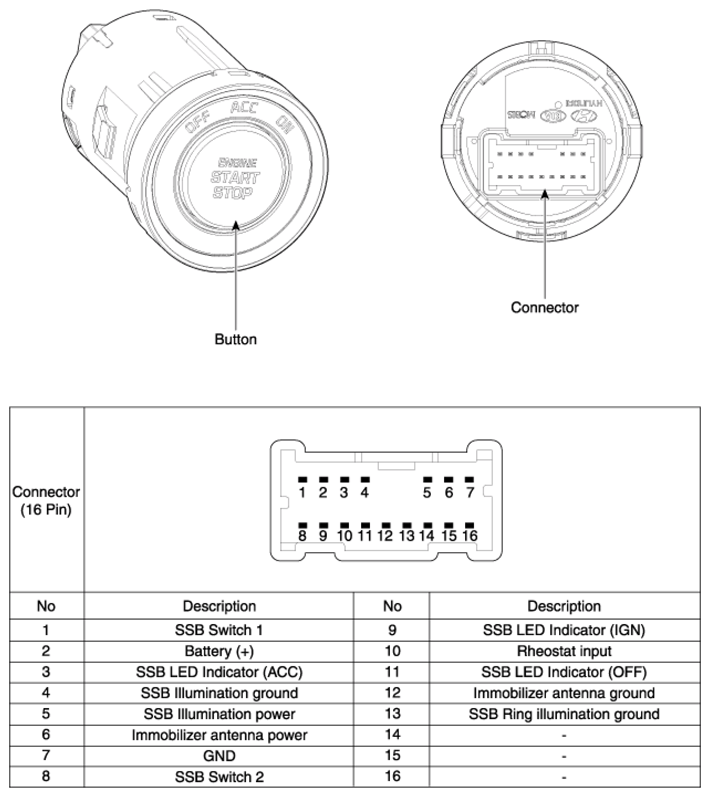

Fig 1: Start/Stop Button Connector End View And Terminal Description
G13033445Courtesy of HYUNDAI MOTOR AMERICA
