Components And Components Location: Components

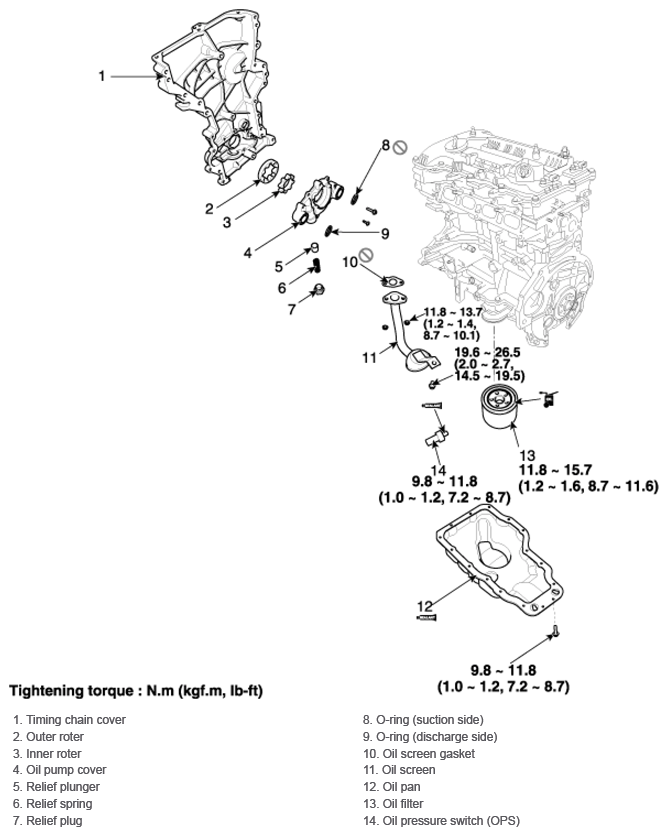

Fig 1: Lubrication System Components With Torque Specification
G13016818Courtesy of HYUNDAI MOTOR AMERICA
