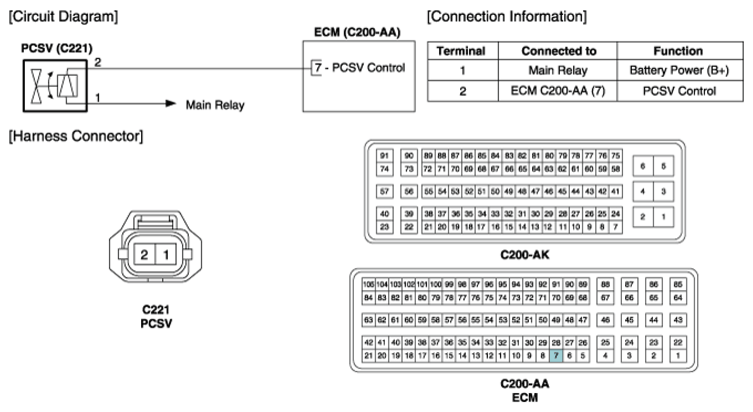

Home › Hyundai › 2021 › Tucson Value, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram
