Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

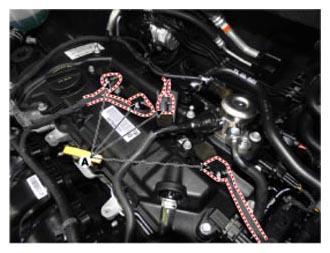

  3. Disconnect the ignition coil connectors (A).
    G13016946Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13016947Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ignition coil (A).
    G13016948Courtesy of HYUNDAI MOTOR AMERICA
