Engine Control System Diagnosis - 2.0L (1 Of 3)
›
DTC P0136-00: O2 Sensor Circuit (Bank 1/Sensor 2)
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA

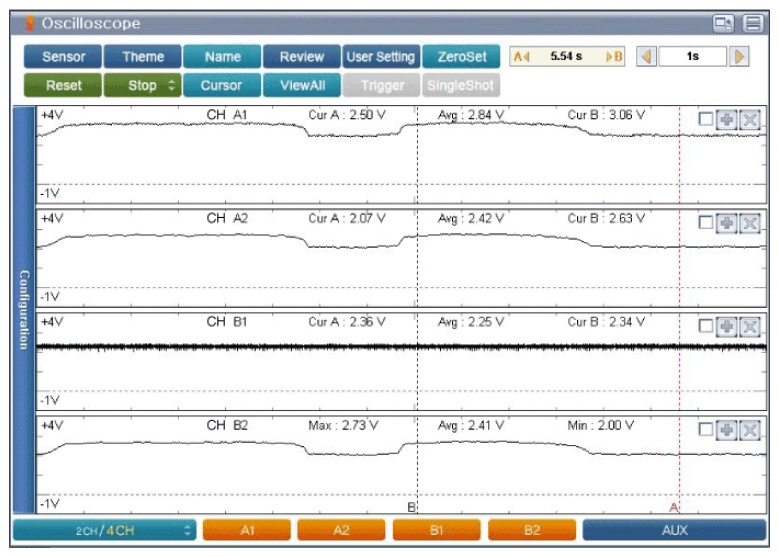

CH A1 (Nernst cell voltage), CH A2 (Pump cell voltage), CH B1 (Common ground), CH B2 (Compensative resistance)
