OCS Rest Procedure

You should perform OCS Reset procedure after service or replacement about all part of the passenger seat. (Not included full seat assembly)

1. Ignition "OFF", connect GDS.

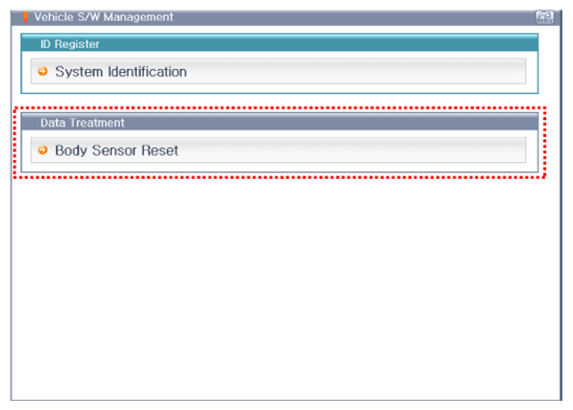

2. Ignition "ON" & Engine "OFF", select Airbag system and "Body Sensor Reset" mode.

   Courtesy of HYUNDAI MOTOR AMERICA

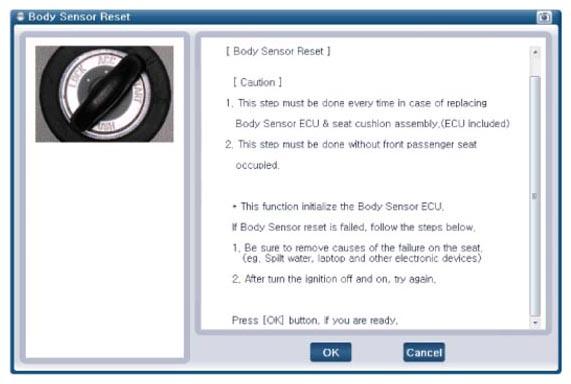

3. The GDS will show the two OCS Reset function steps.
   1. Erase OCS diagnostic codes.
   2. OCS initialization.

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION: This Step must be done during front passenger seat empty.

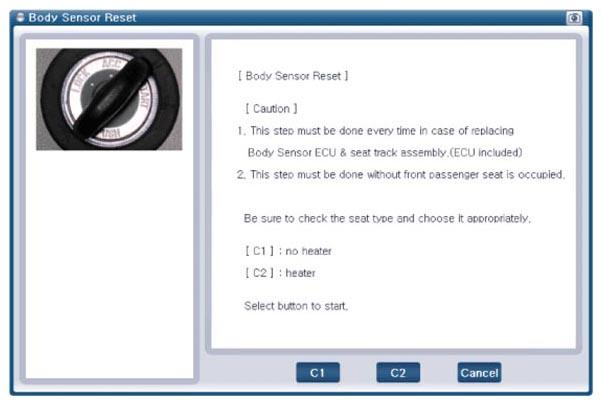

4. Select product configuration.
   1. C1: No heater
   2. C2: Heater

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION: Before the starting the OCS Rest process, cross check seat correct configuration with actual vehicle.
   If you see the center console, you can find different buttons per each different seat configuration type. (Refer to the below picture)

   Courtesy of HYUNDAI MOTOR AMERICA

5. The OCS initialization procedure will be performed.

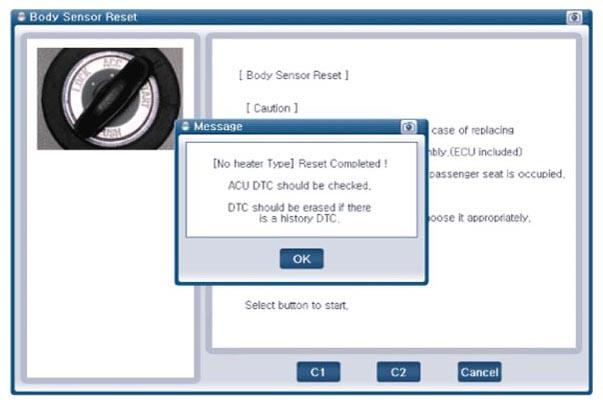

   C1: No Heater Type Reset

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

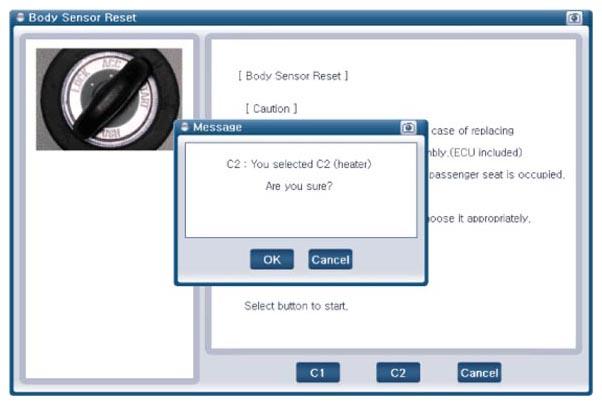

   C2: Heater Type Reset (Including Cooling Seat)

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   CAUTION: Erase the SRSCM diagnostic codes after completing the OCS reset.

   DTC Code	Code Name	Description
   B1763	ECU Defect	Reset (Calibration setting) is not completed ECU is damaged from physical stress
   B1764	MAT Defect	Mat and ECU are not connected. Mat is damaged from physical stress.
   B1767	Algo cut-off	Too much humidity.
   B1111	IGN voltage high	IGN voltage high.
   B1112	IGN voltage low	IGN voltage low.
   B1603	CAN bus off	CAN Bus is not working.
   B1697	ACU communication error	CAN Bus is not working. ACU is not working.
