Repair Procedures: Replacement

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

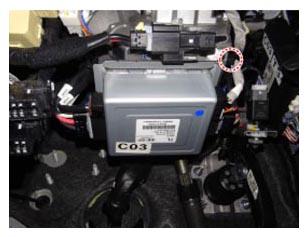

Remove the fixed clip from the bracket.

Courtesy of HYUNDAI MOTOR AMERICA

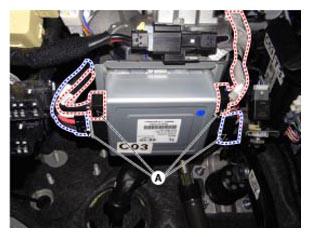

Disconnect the MDPS connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

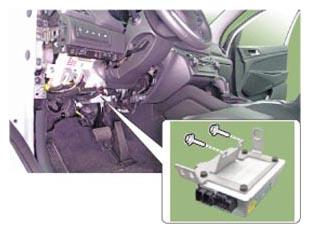

Remove the MDPS control unit after loosening the mounting bolts.
Tightening Torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

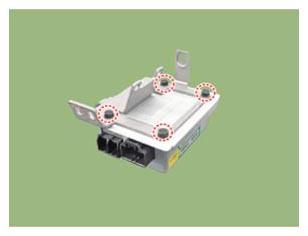

Remove the MDPS bracket.
Tightening Torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of the removal.
Conduct the "ASP Calibration" and "EPS Type Recognition" by GDS.
(Refer to MDPS Motor - "DIAGNOSIS WITH GDS ")
Remove the DTC.
Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
