Automatic Transaxle Control System - 2.0L
›
Components & Components Location
›
Components Location
Components Location

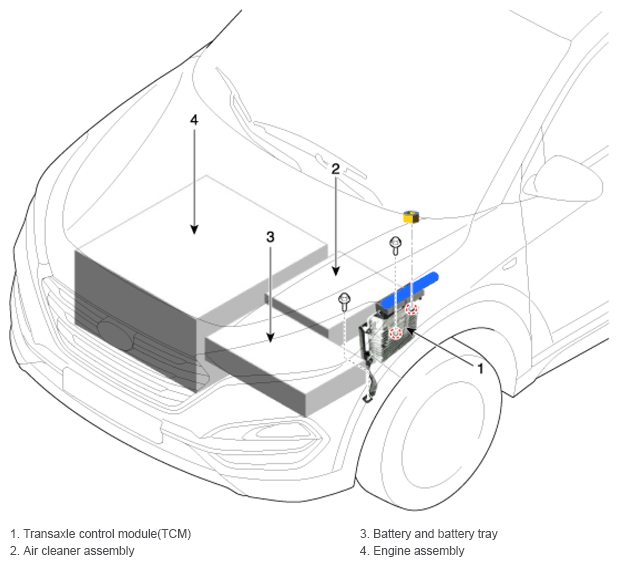

Fig 1: Automatic Transaxle Control System Components Location With Torque Specification (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

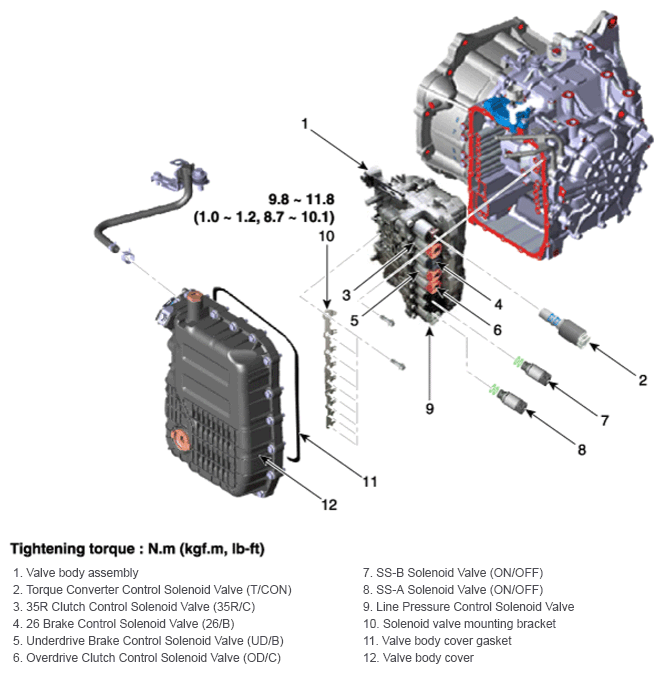

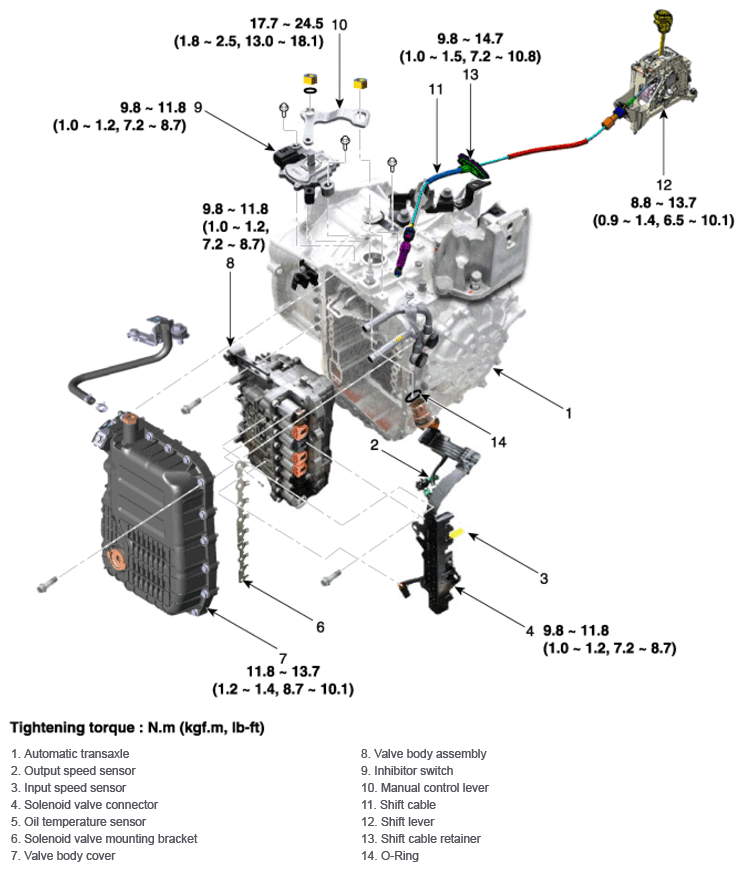

Fig 2: Automatic Transaxle Control System Components Location With Torque Specification (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
