Repair Procedures: Inspection
Using the GDS, check the input/output speed sensor waveforms.
Turn OFF the ignition switch.
Connect the GDS to the Data Link Connector (DLC) on the lower crash pad.
Ignition "ON" & Engine "ON".

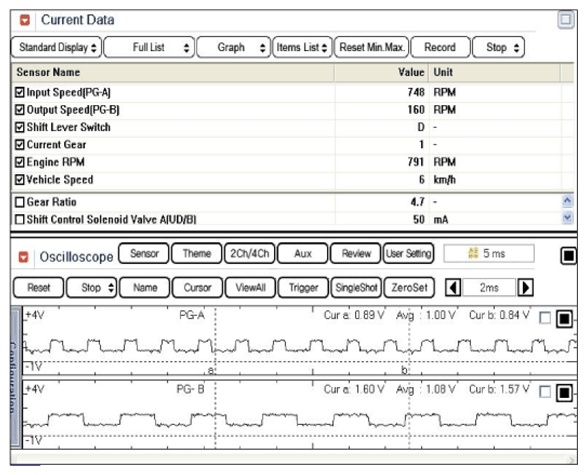

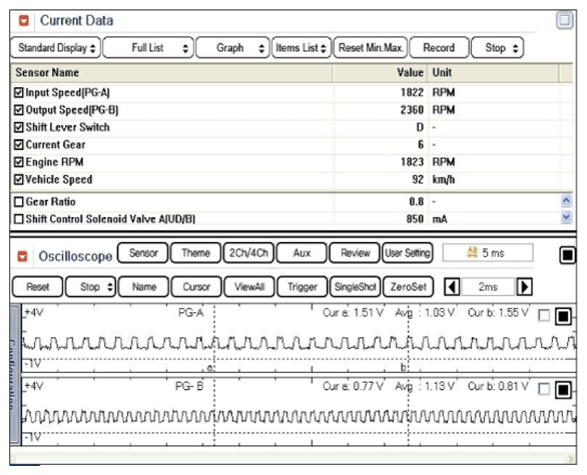

Check the input/output speed sensor waveforms at high speed and low speed.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
