Circuit Diagram
Circuit Diagram

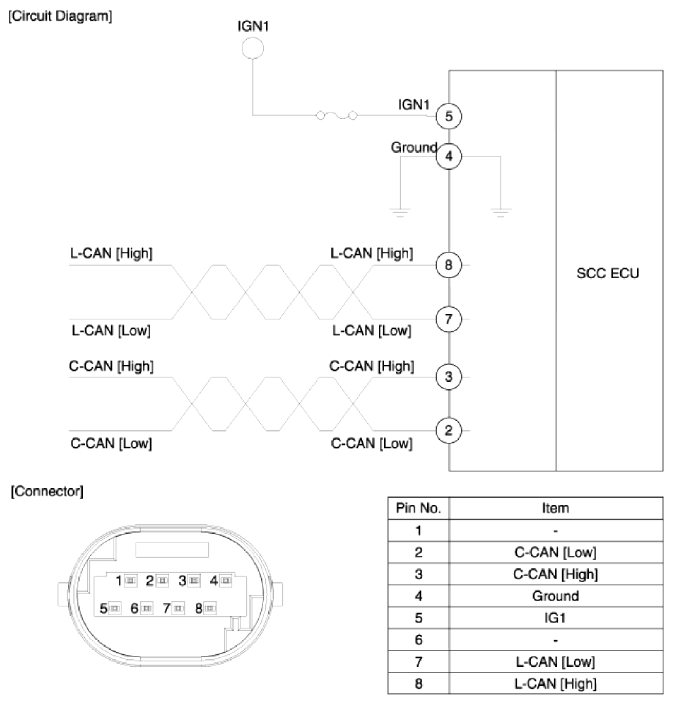

Fig 1: Smart Cruise Control Unit Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
