Power Window Switch
›
Schematic Diagrams
›

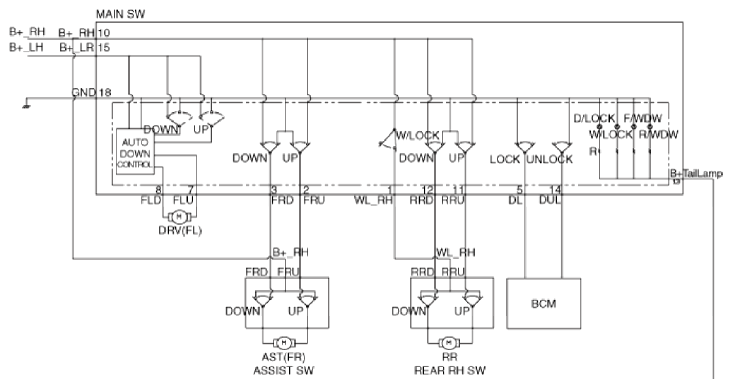

Circuit Diagram
›
Driver Power Window Switch (Auto Down)
Driver Power Window Switch (Auto Down)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
