FixVault
Home
›
Hyundai
›
2021
›
Veloster 2.0, Automatic Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›

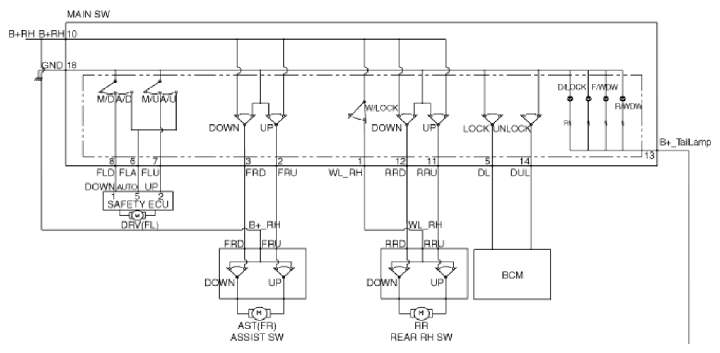

Driver Safety Power Window Switch
Driver Safety Power Window Switch
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
