Repair Procedures: Installation

Install in the reverse order of the replacement.

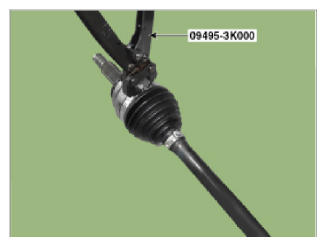

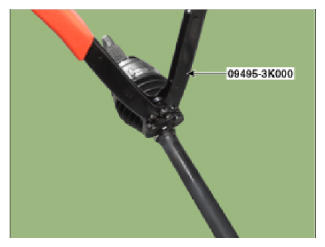

Using the SST (09495-3K000), secure the BJ boot bands.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the boot band.
Install the TJ joint assembly.
(Refer to Driveshaft Assembly - "TJ JOINT ")
Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
