Description & Operation: Description: Components
- Head Up Display: Information of the vehicle system is output to the combine through CAN communication.
- HUD ON/OFF
Use the switch on the dashboard to turn the HUD ON and OFF.
- Ambient Light Sensor

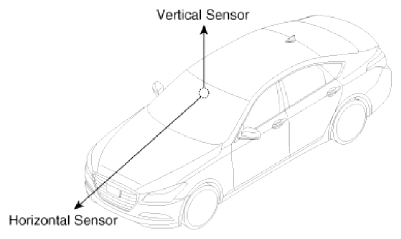

Ambient light sensor: The two-direction (horizontal, vertical) measuring sensor is applied and the HUD brightness is adjusted by the horizontal measurements.
Two-direction measuring ambient light sensor applied
CAUTION: If the ambient light sensor measurement is not recognized, the HUD does not work. Make sure that the sensor should work before checking the HUD.
Please note that applying window tint film on the HUD specialized windshield glass may reduce the video display quality.
Wearing the polarized sunglass may result in a distorted or darkened image.
