Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the instrument cluster.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

  3. Remove the head up display bracket after loosening the screw.
    G13054404Courtesy of HYUNDAI MOTOR AMERICA

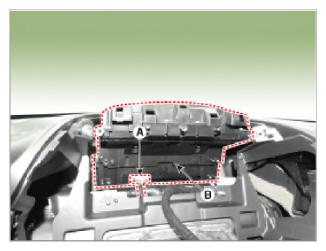

  4. Remove the head up display unit after disconnect the connector (A).
    G13054405Courtesy of HYUNDAI MOTOR AMERICA
