Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

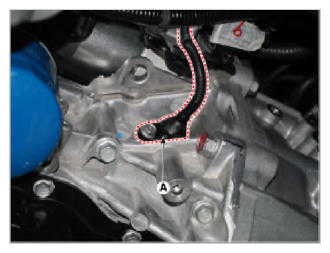

  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor after removing the installation bolt.
G13055541Courtesy of HYUNDAI MOTOR AMERICA
