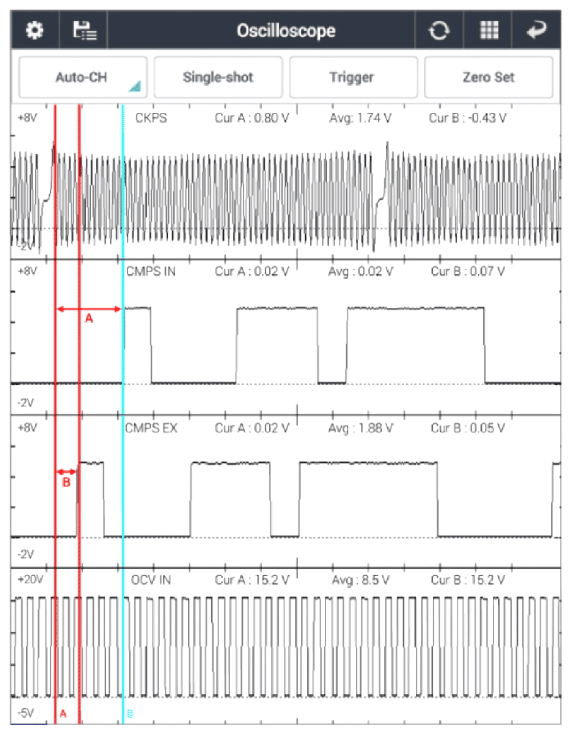

Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

G13055538Courtesy of HYUNDAI MOTOR AMERICA
