Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
NOTE:
  • Note that the SST (Part No.: 09392-2H100) is useful when removing the heated oxygen sensor.

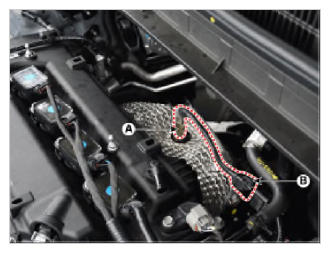

Bank 1/Sensor 1

G13055557Courtesy of HYUNDAI MOTOR AMERICA

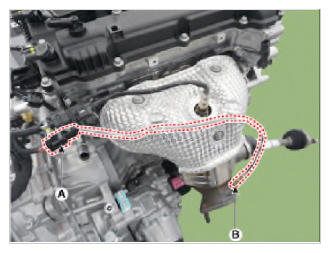

Bank 1/Sensor 2

G13055558Courtesy of HYUNDAI MOTOR AMERICA
