Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

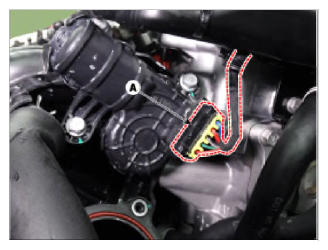

  2. Disconnect the VCMA connector (A).
    G13055591Courtesy of HYUNDAI MOTOR AMERICA

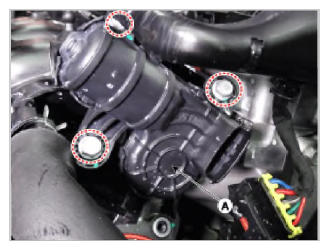

  3. Remove the VCMA (A) after removing 3 installation bolts.
G13055592Courtesy of HYUNDAI MOTOR AMERICA
