Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

LHD

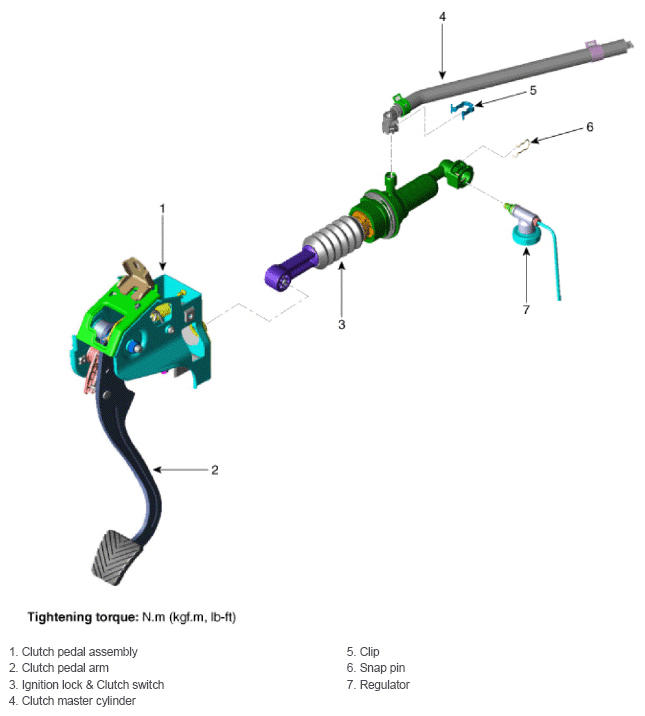

Fig 1: Clutch Master Cylinder Components Location With Torque Specification (LHD)

Courtesy of HYUNDAI MOTOR AMERICA

RHD

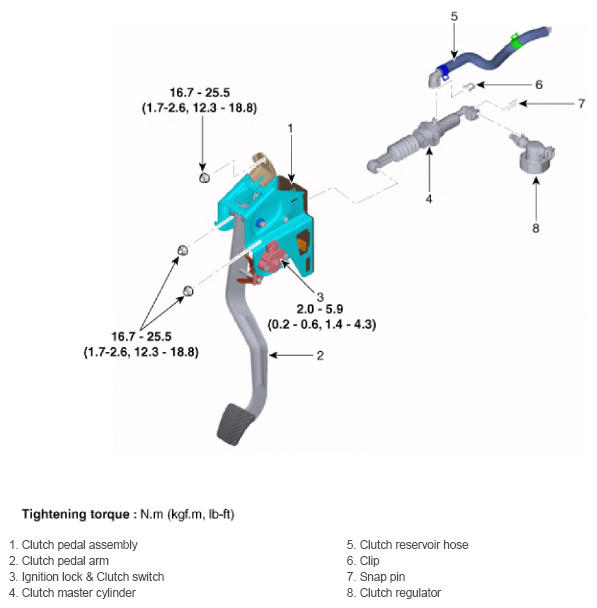

Fig 2: Clutch Master Cylinder Components Location With Torque Specification (RHD)

Courtesy of HYUNDAI MOTOR AMERICA
