Input/Turbine Speed Sensor

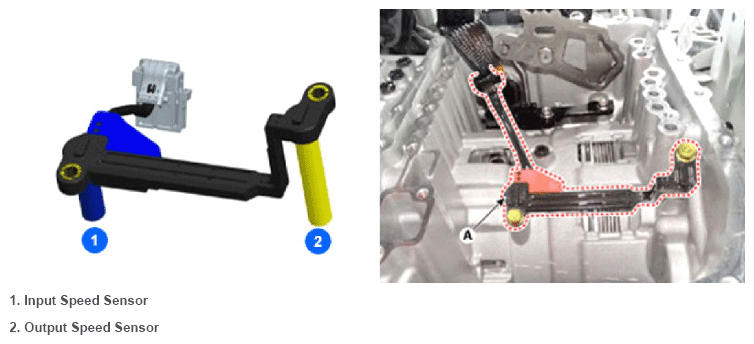

The input shaft and output shaft speed sensors are integrated and installed inside the automatic transmission. The current type hall sensor is used and the current changes according to magnetic variation. Each sensor circuit consists of 2 pins and the circuit which PCM/TCM sends power and controls through the component is configured. This input sensor provides important input information for electronic control and this information is necessary in all operation ranges such as feedback control, damper clutch control, shift stage setting control, line pressure control, clutch operation pressure and other sensor defect judgment criteria.
