Repair Procedures: Removal
- Turn the ignition switch OFF and then disconnect the negative (-) battery cable.
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

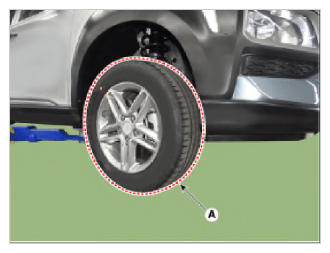

- Remove the front wheel and tire (A) from front hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the front wheel and tire (A).
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")

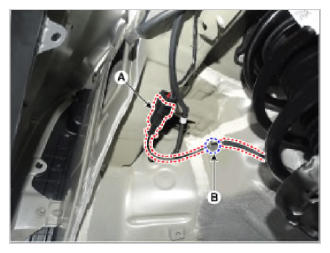

- Disconnect the wheel speed sensor connector (A) and then remove the fixing clip (B).

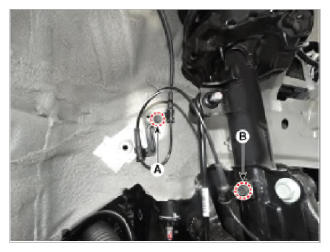

- Remove the front wheel speed sensor cable bracket bolt (A), (B).
Tightening torque:
6.8 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb-ft)

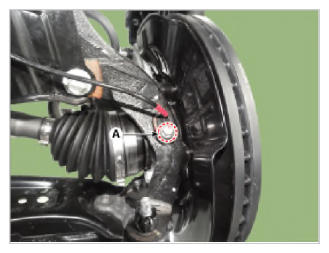

- Loosen the bolt (A) and then remove the front wheel speed sensor.
Tightening torque:
7.8 - 11.7 N.m (0.7 - 1.1 kgf.m, 5.7 - 8.6 lb-ft)
