Home › Hyundai › 2021 › Veloster 2.0, Standard Trans › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.0L › Components & Components Location › Components

Components & Components Location: Components

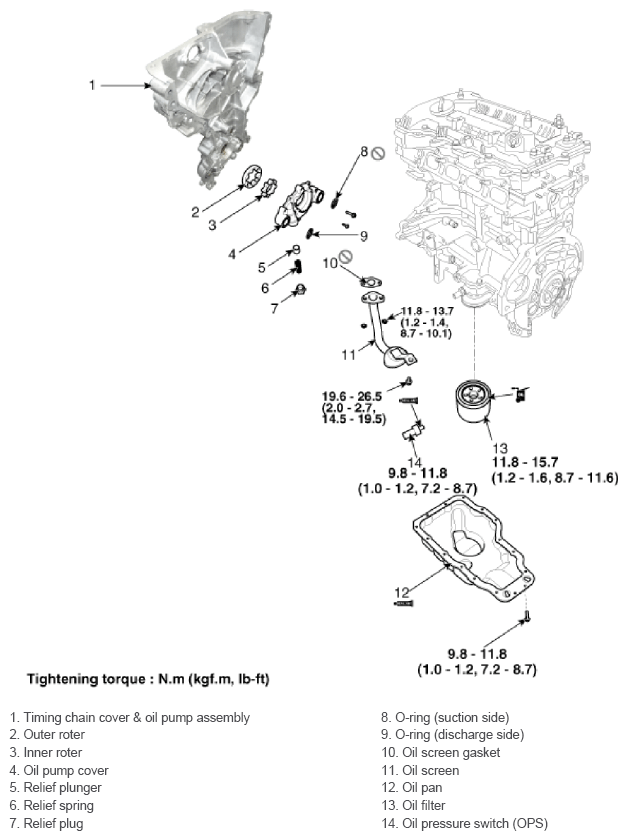

Fig 1: Lubrication System Components Location With Torque Specifications
G13055318Courtesy of HYUNDAI MOTOR AMERICA
