Repair Procedures: Removal

  1. Lift the vehicle.

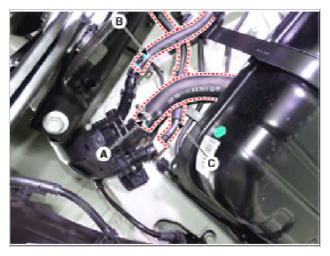

  2. Disconnect the fuel filler hose (A).
  3. Disconnect the leveling hose (B) and ventilation hose (C).
    G13055646Courtesy of HYUNDAI MOTOR AMERICA
  4. Open the fuel filler door.

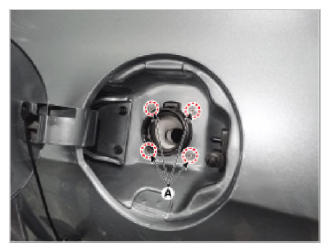

  5. Remove the filler-neck mounting bolt (A).
    G13055647Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the rear-LH wheel, tire, and the inner wheel house.

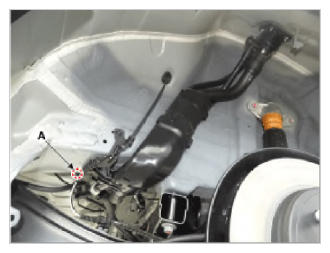

  7. Remove the filler-neck assembly after loosening the mounting bolt (A).
G13055648Courtesy of HYUNDAI MOTOR AMERICA
