Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box uper cover assembly. (Refer to Body - "GLOVE BOX ")

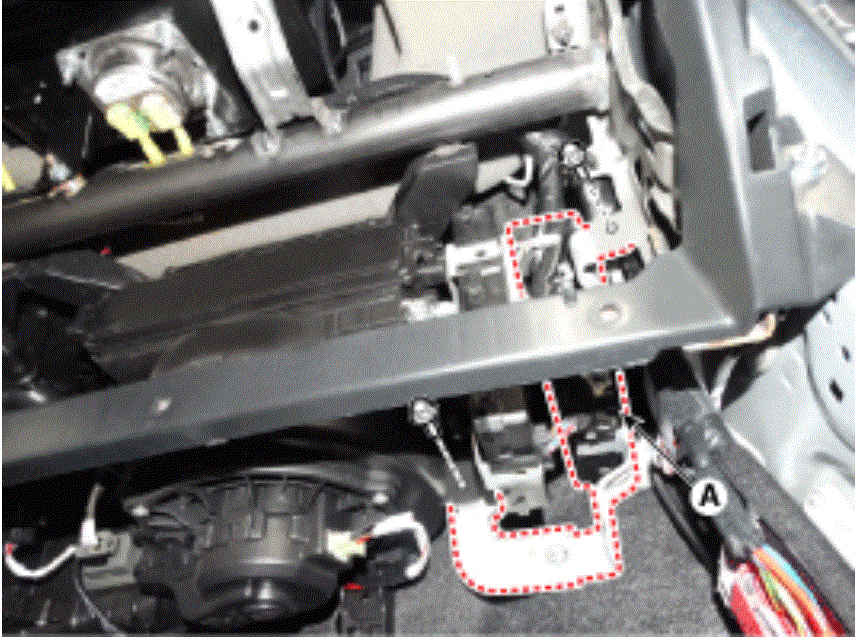

  3. Remove the smart key unit (A)
    G15494893Courtesy of HYUNDAI MOTOR AMERICA

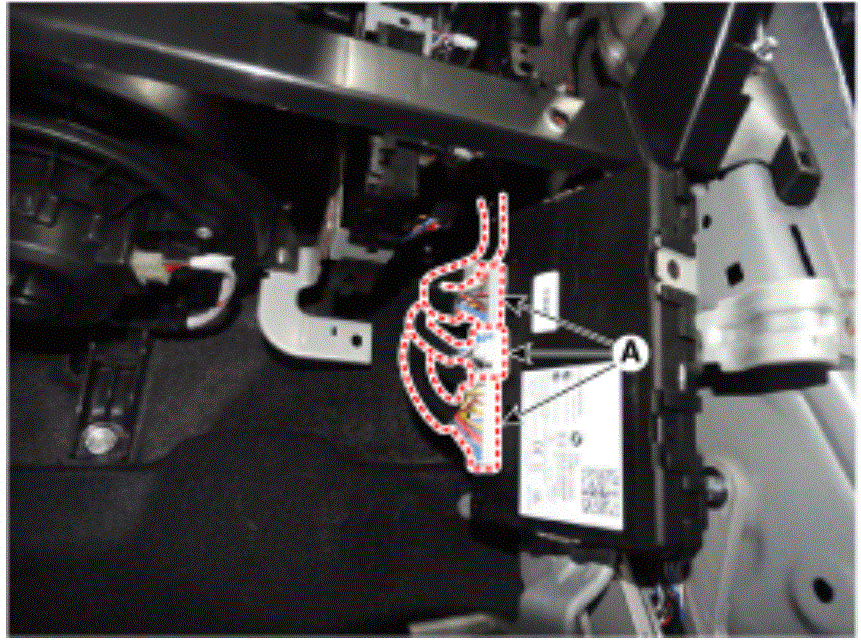

  4. Disconnect the smart key unit connectors (A).
    G15494894Courtesy of HYUNDAI MOTOR AMERICA
