Schematic Diagram

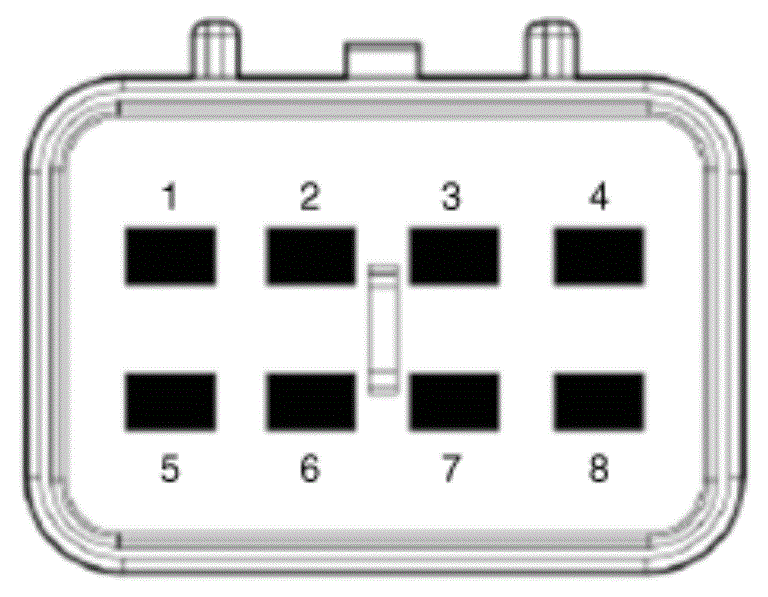

Connector Pin Description
G15474941Courtesy of HYUNDAI MOTOR AMERICA
 1 -
2 -
3 -
4 -
5 Power 5V
6 Ground
7 Signal 1
8 Signal2

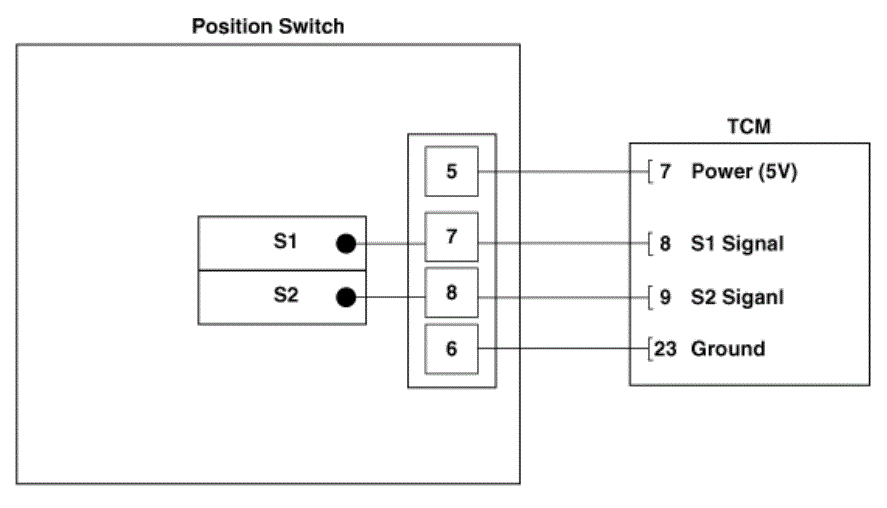

G15474942Courtesy of HYUNDAI MOTOR AMERICA
