Description & Operation: Description

• Component Location  : Dual Clutch Transmission assembly

Courtesy of HYUNDAI MOTOR AMERICA

• Function

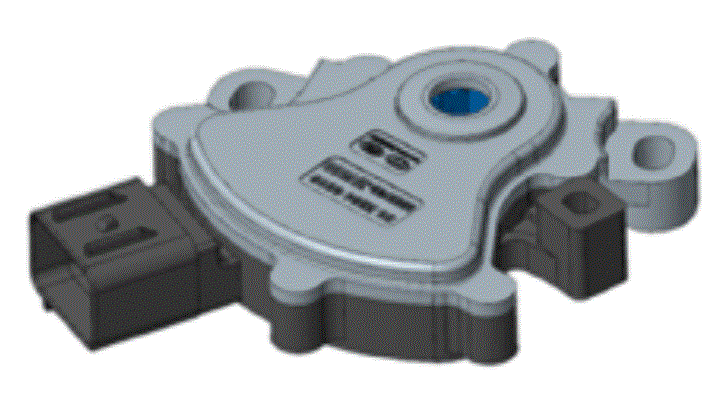

  • The position switch mounted on the upper of transmission and connected with shifter lever.
  • Check whether the vehicle can be driven forward/backward while engine is running.
  • It controls the shift stage by transmitting the PWM signal value of the position switch to the TCM according to the P, R, N, D operation of the shift lever.
