Home › Hyundai › 2021 › Veloster N Automatic DCT Trans › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Control System › Shift Lever › Components And Components Location › Components

Components And Components Location: Components

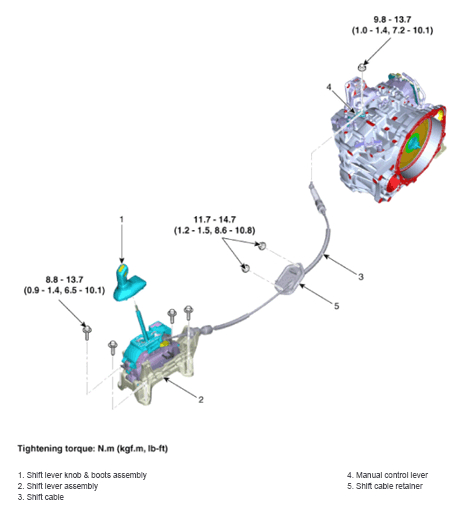

Fig 1: Shift Lever Components Location With Torque Specification
G15474919Courtesy of HYUNDAI MOTOR AMERICA
