Home › Hyundai › 2021 › Veloster N Standard Trans › Repair and Diagnosis (Single Page) › Engine Mechanical › Mechanical › Cylinder Head Assembly › Components And Components Location › Components

Components And Components Location: Components

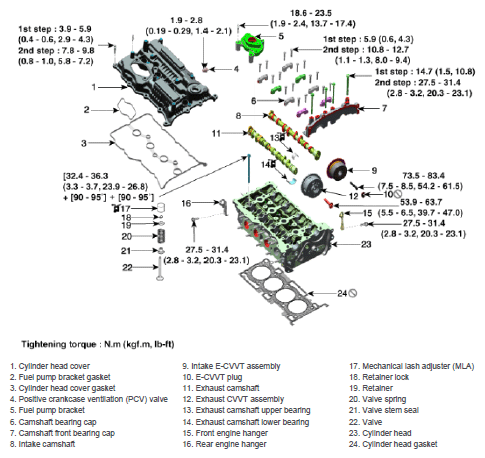

Fig 1: Cylinder Head Assembly Components Location With Torque Specification
G15471522Courtesy of HYUNDAI MOTOR AMERICA
