Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

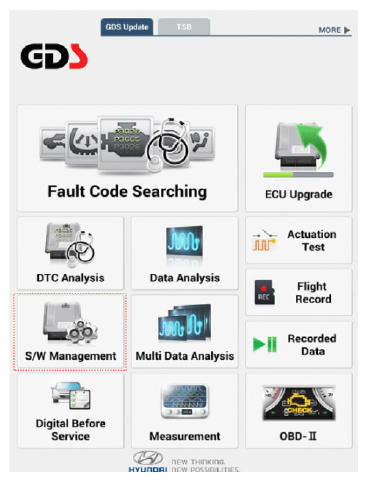

  2. Select the 'S/W Management' and 'Car model'.
    G15494915Courtesy of HYUNDAI MOTOR AMERICA

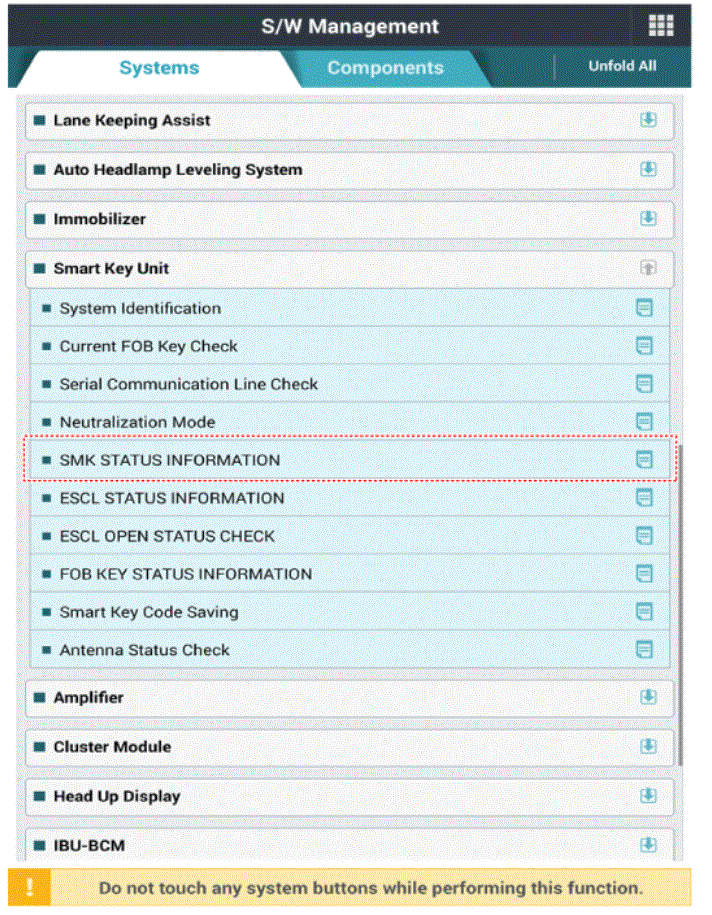

  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
    G15494916Courtesy of HYUNDAI MOTOR AMERICA

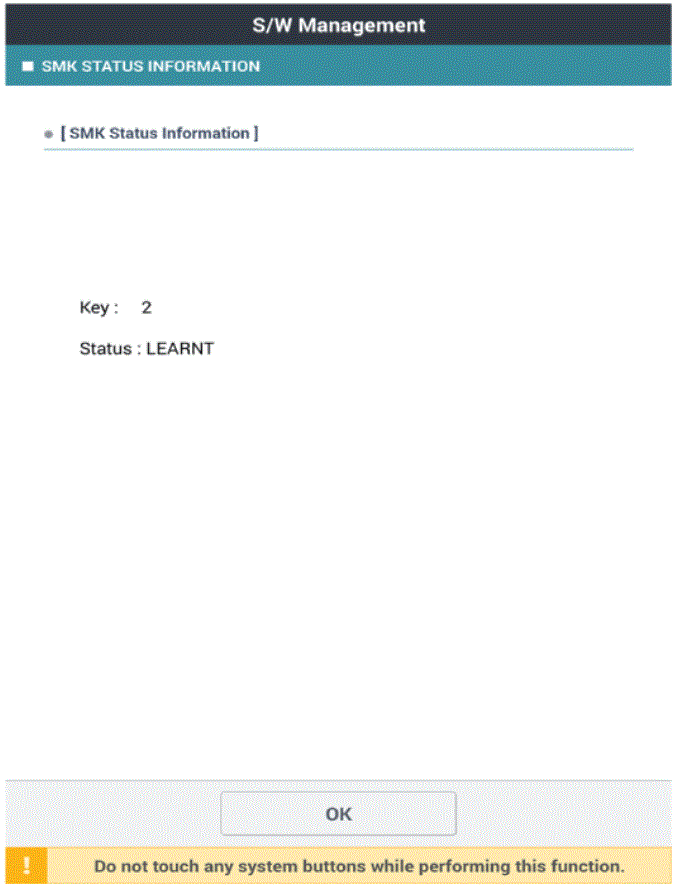

    G15494917Courtesy of HYUNDAI MOTOR AMERICA
