Interior 1 Antenna
NOTE:
- Take care not to scratch the crash pad and related parts.
- Disconnect the negative (-) battery terminal.
- Remove the floor console front tray. (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

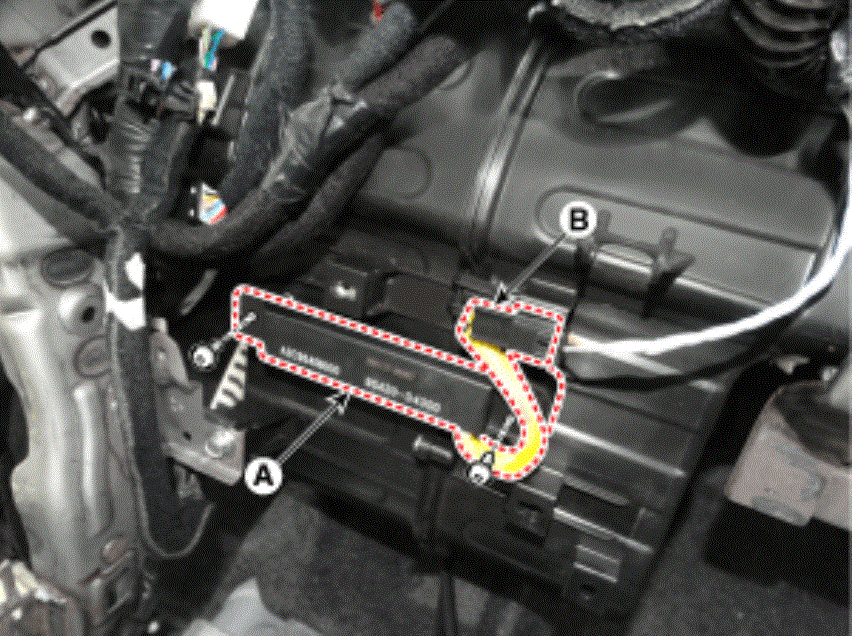

- Remove the interior 1 antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
