Repair Procedures: Installation
- Install in the reverse order of removal.

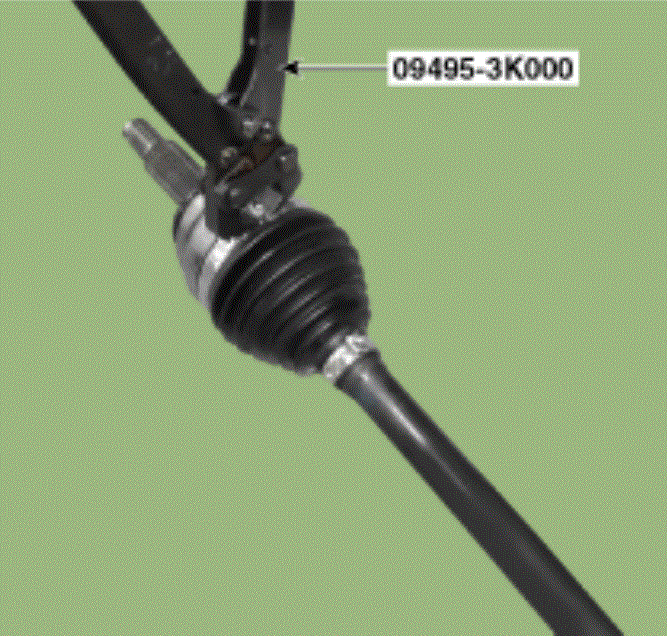

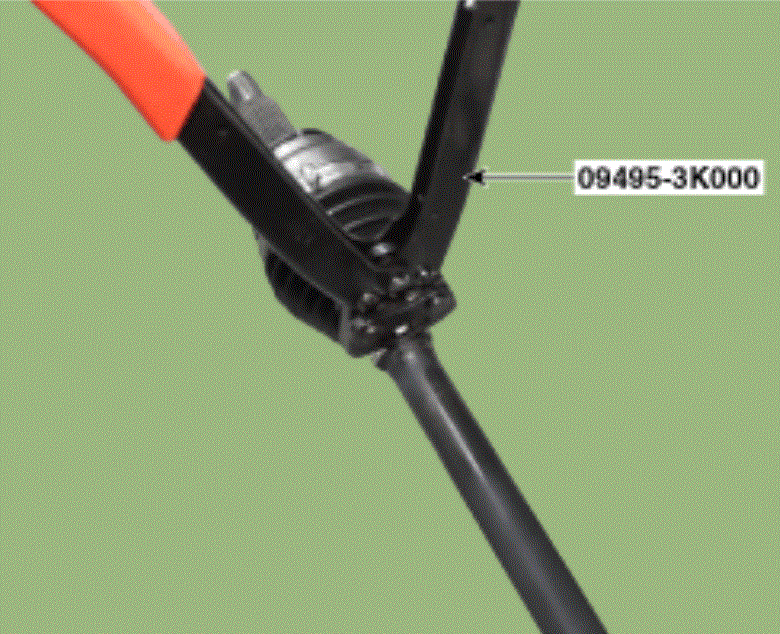

- Using the SST (09495 - 3K000), secure the BJ boot bands.NOTE:
- Do not reuse the boot band.
- Install the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ JOINT ")
- Install the front driveshaft. (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
- Check the alignment. (Refer to Suspension System - "ALIGNMENT ")
