Home › Hyundai › 2021 › Veloster N Standard Trans › Repair and Diagnosis › Engine Mechanical › Cooling Fan › Engine Cooling System › Water Pump › Components And Components Location › Components

Components And Components Location: Components

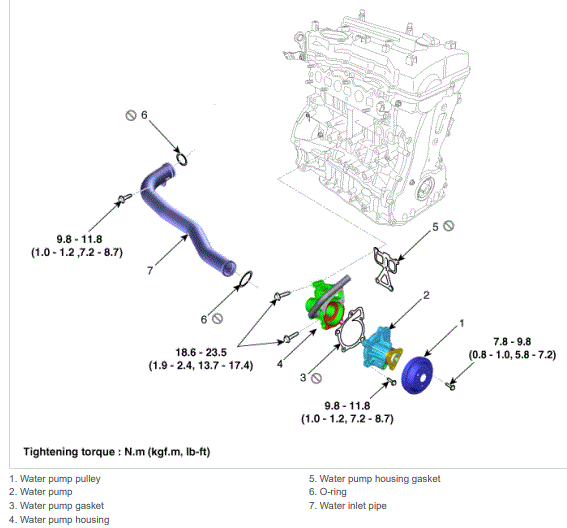

Fig 1: Water Pump Components Location With Torque Specification
G15471683Courtesy of HYUNDAI MOTOR AMERICA
