Components And Components Location: Components

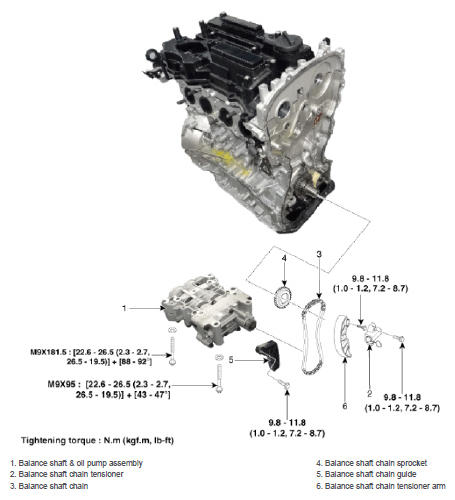

Fig 1: Balance Shaft & Oil Pump Components Location With Torque Specification
G15471705Courtesy of HYUNDAI MOTOR AMERICA
