Components And Components Location: Components

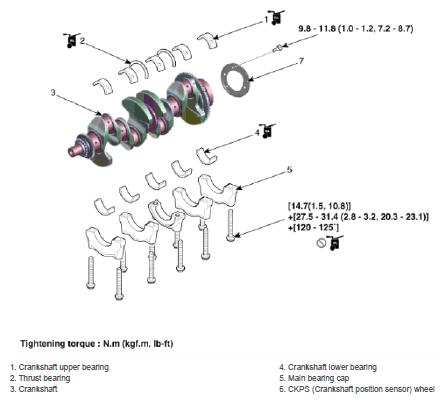

Fig 1: Crankshaft Components Location With Torque Specification
G15471619Courtesy of HYUNDAI MOTOR AMERICA
