Components And Components Location: Components

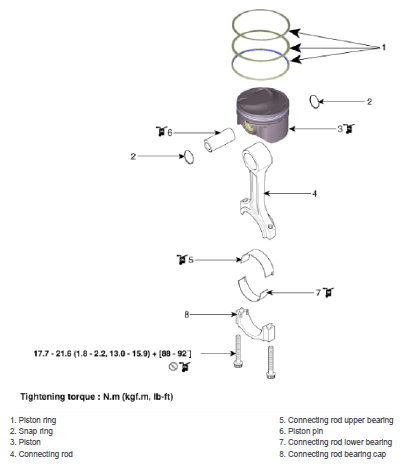

Fig 1: Piston & Connecting Rod Components Location With Torque Specification
G15471599Courtesy of HYUNDAI MOTOR AMERICA
