Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

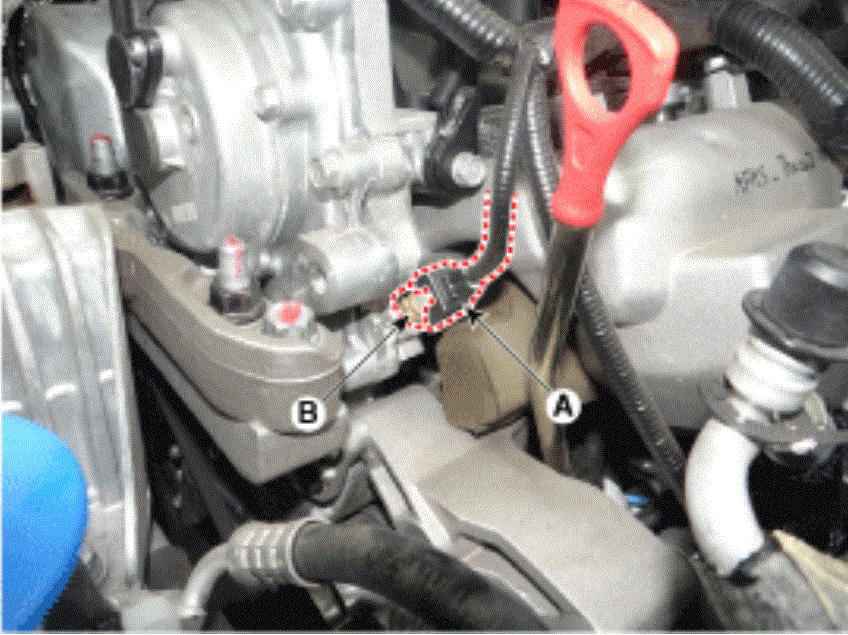

  2. Disconnect the OTS connector (A).
  3. Remove the OTS (B).
G15472114Courtesy of HYUNDAI MOTOR AMERICA
