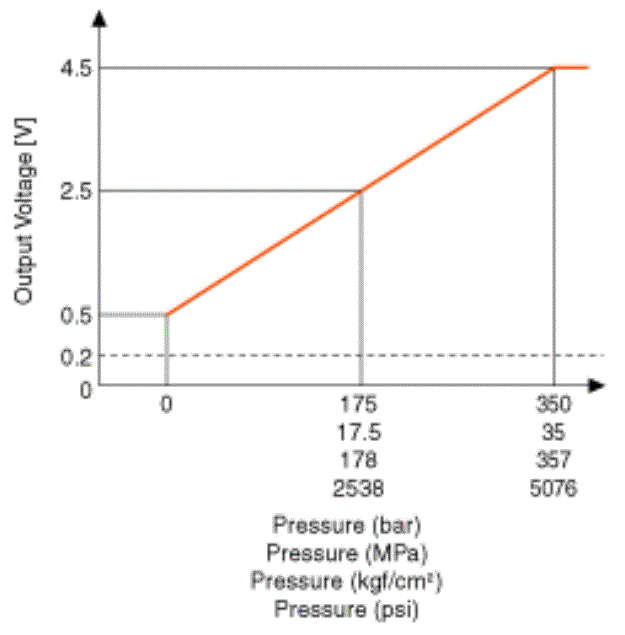

Rail Pressure Sensor (RPS): Specifications: Specification

Pressure		Output Voltage (V) [Vref=5V]
bar	[MPa (kgf/cm2 , psi)]
0	0 (0, 0)	0.5
175	17.5 (178, 2538)	2.5
350	35 (357, 5076)	4.5

Courtesy of HYUNDAI MOTOR AMERICA
