Rail Pressure Sensor (RPS)

Pressure Output Voltage (V) [Vref=5V]
bar [MPa (kgf/cm2 , psi)]
0 0 (0, 0) 0.5
175 17.5 (178, 2538) 2.5
350 35 (357, 5076) 4.5

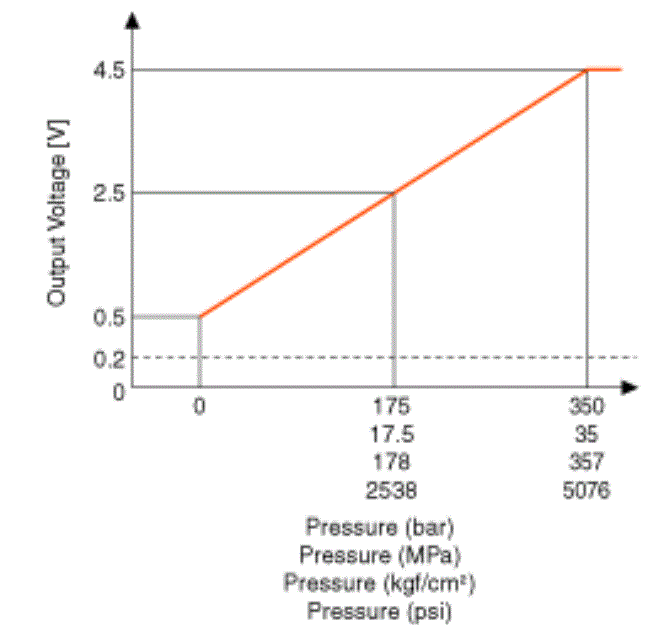

G15471986Courtesy of HYUNDAI MOTOR AMERICA
